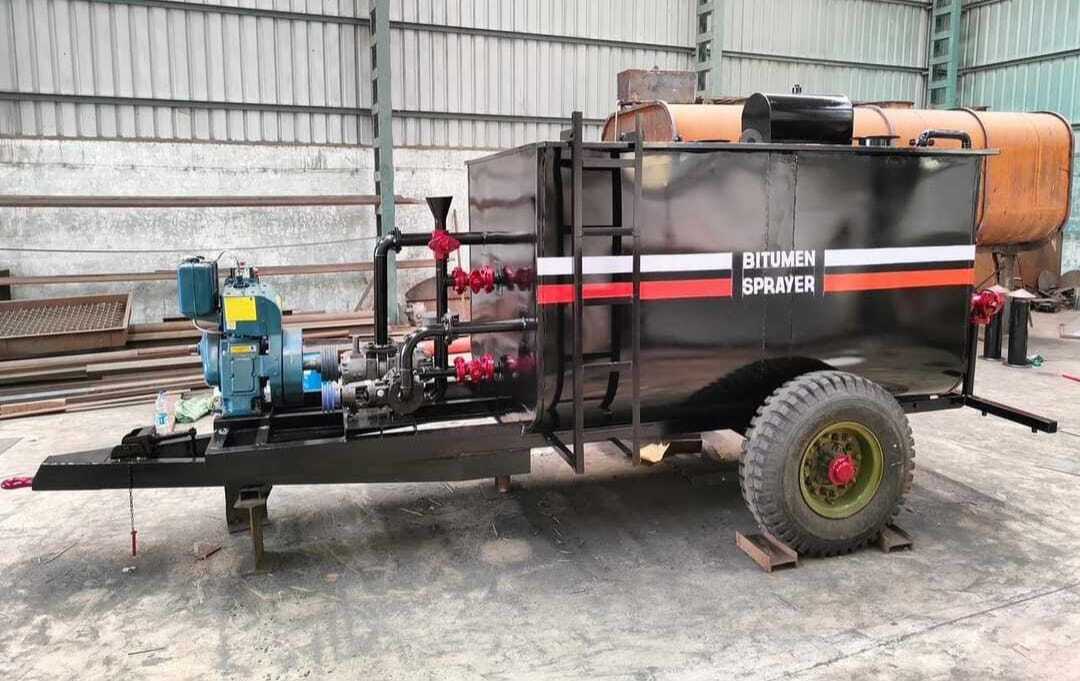

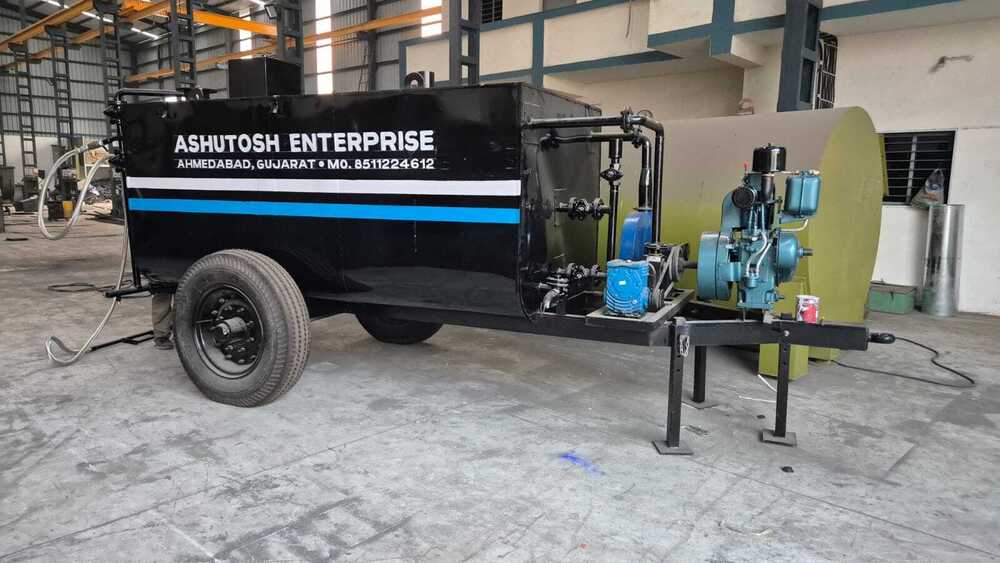

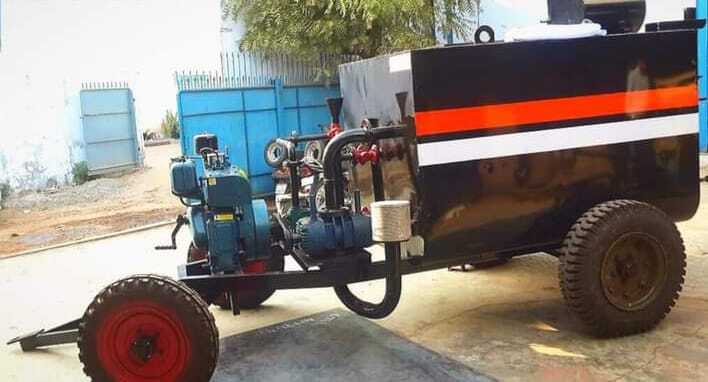

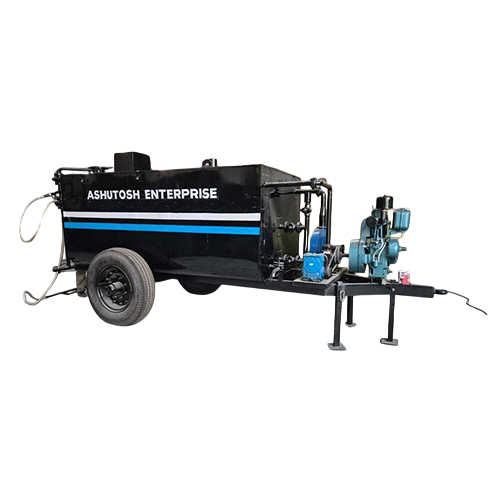

Trolley Mounted Bitumen Sprayer

Product Description

We are a leading Manufacturer of trolley mounted bitumen sprayer, truck mounted bitumen sprayer, bitumen pressure distributor, tractor mounted bitumen sprayer, bitumen sprayer and tractor mounted road sweeper machine from Ahmedabad, India.

Condition: New

Price varies as per the order quantity and product specification.

Trolley mounted bitumen sprayer Specifications

- Trolley frame: Steel or aluminum frame

- Trolley wheels: Pneumatic or solid rubber wheels

- Trolley brakes: Hydraulic or mechanical brakes

- Trolley dimensions: 3,000-4,000 mm (118-157 inches) in length, 1,500-2,000 mm (59-79 inches) in width, 1,000-1,500 mm (39-59 inches) in height

Bitumen Tank Specifications

- Tank material: Steel or stainless steel

- Tank capacity: 1,000-3,000 liters (264-792 gallons)

- Tank dimensions: 2,000-3,000 mm (79-118 inches) in length, 1,000-1,500 mm (39-59 inches) in width, 500-1,000 mm (20-39 inches) in height

Spraying System Specifications

- Spraying width: 2-4 meters (6.6-13.1 feet)

- Spraying pressure: 10-20 bar (145-290 psi)

- Spraying nozzle: Adjustable nozzle for uniform spraying

- Spraying distance: Up to 20 meters (66 feet)

Safety Features

- ROPS (Roll Over Protection Structure) and FOPS (Falling Object Protection Structure)

- Seat belt and safety glass

- Horn and backup alarm

- Emergency stop button

Dimensions

- Length: 4,000-6,000 mm (157-236 inches)

- Width: 2,000-3,000 mm (79-118 inches)

- Height: 1,500-2,500 mm (59-98 inches)

- Weight: 2,000-4,000 kg (4,400-8,800 lbs)

Attachments

- Bitumen hose with spraying nozzle

- Trolley mounted control panel

- Heating system (optional)

- Bitumen pump and motor
